Modular Strut Systems

---

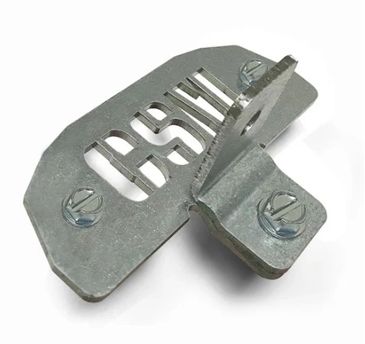

Container Strut Mount (CSM™) Galvanized Framing Brackets (10 Pack), allow for hassle-free mounting of strut channels inside any shipping container with ISO 9910 corrugations.

Each bracket includes:

• 10 x Base Bracket

• 10 x Angle Bracket

• 22 (2 Extra) x Hex Head Thread Cutter Screws (#14, 3/4)

• 11 (1 Extra) x Flange Head Sheet Metal Screw (5/16",1")


Customers are to supply their own strut channel and associated 3/8" bolts, washers & spring nuts. Requires a 7/32 drill bit.

• 10 gauge, 3/16" Thickness

• Ideal for installing shelving and electrical panels in shipping containers

• Provides strut framing without welding

• Solves the safety hazard issue of screws poking through the exterior wall

• Laser-cut with galvanized finish

$ 174.95

Self-tapping screws or bolts protruding from the exterior are a safety hazard and will render your container unshippable.

Imagine No More Driving Screws Through Container Walls & No More Welding!

Modular Strut Systems (MSS™):

• Container Strut Brackets allow for hassle-free mounting of strut channels inside and outside any shipping container with ISO 9910 corrugations
• Made with 10-gauge galvanized steel
• Designed to be used with 3/8" bolts, washers, and spring nuts
• Customers are to supply their own strut channel and associated 3/8" bolts, washers & spring nuts
• Ideal for installing shelving and electrical panels in shipping containers
• Provides strut framing without welding
• Solves the safety hazard issue of screws poking through the exterior wall
• Laser-cut galvanized steel
• Designed to fit both sidewall and end wall corrugations
• Comes with No.14, 3/4" Hex Head Thread Cutter Screws

*IMPORTANT: Struts CAN NOT be installed once a container has been spray foam insulated.

Options Available:

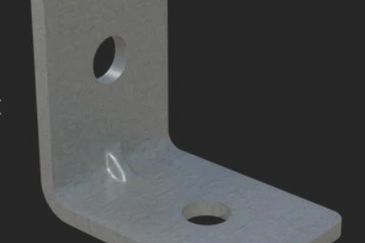

MSS Angle Bracket $ 7.50

MSS 1-Way Bracket $ 15.00

MSS 2-Way Bracket $ 20.00

Exterior Bracket $ 17.50

Container Strut Mount (CSM™) Bracket Packs

Strut Mount Brackets allow for hassle-free mounting of strut channels inside and outside any shipping container with ISO 9910 corrugations.

• Laser-cut galvanized steel
• Provides strut framing without welding
• Solves the safety hazard issue of screws poking through the exterior wall
• CSM™ Strut Mount Bracket supports a heavier load than MSS brackets
• CSM™ Bracket Packs available for 10', 20', and 40' shipping containers
• 10-Gauge Steel
• Galvanized Finish
• Designed to fit both sidewall and end wall corrugations
• Customers are to supply their own strut channel and associated 3/8" bolts, washers & spring nuts. Ideal for installing shelving and electrical panels in shipping containers
• U.S. Patent No. 12,509,876 B

Includes No.14, 3/4" Hex Head Thread Cutting Screws.

Options and Sizes Available:

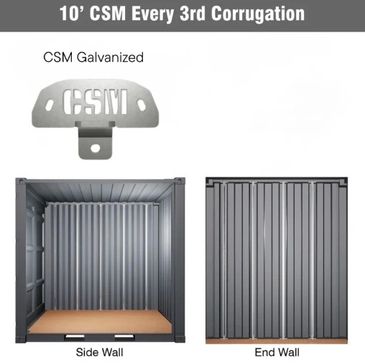

CSM (Galvanized Steel) / Every 3rdCorrugation

Size 10 $ 420.00

Size 20 $ 700.00

Size 40 $ 1,260.00

CSM (Galvanized Steel) / Every 4thCorrugation

Size 10 $ 350.00

Size 20 $ 560.00

Size 40 $ 980.00

CSM (Galvanized Steel) / Every Corrugation

Size 10 $ 980.00

Size 20 $ 1,680.00

Size 40 $ 1,680.00

Modular Strut System (MSS™)
Strut Mount Brackets allow for hassle-free mounting of strut channels inside and outside any shipping container with ISO 9910 corrugations.

Standard MSS™ Strut Mount Bracket Packs

• MSS™ (MSS™ 2-Way & MSS™ 1-Way) Bracket Packs available for 10', 20', and 40' shipping containers
• 10-Gauge Steel
• Galvanized Finish
• Customers are to supply their own strut channel and associated 3/8" bolts, washers & spring nuts. Ideal for installing shelving and electrical panels in shipping containers
• Provides strut framing without welding
• Solves the safety hazard issue of screws poking through the exterior wall
• Laser-cut galvanized steel
• Designed to fit both sidewall and end wall corrugations

Sizes / Options Available:

MSS (Galvanized Steel) Every Corrugation

Size 10 $ 895.00

Size 20 $ 1,640.00

Size 40 $ 3,180.00

MSS (Galvanized Steel) Every 2nd Corrugation

Size 10 $ 470.00

Size 20 $ 820.00

Size 40 $ 1,660.00

MSS (Galvanized Steel) Every 3rd Corrugation

Size 10 $ 400.00

Size 20 $ 680.00

Size 40 $ 1,240.00

MSS (Galvanized Steel) Every 4th Corrugation

Size 10 $ 400.00

Size 20 $ 540.00

Size 40 $ 960.00

Premium CSM™ Heavy Duty Upper Decker Roof Brackets, generation 1 model.

Hardware and strut channels sold separately. These are found easily at your local hardware store.

Hardware Required

2 x 5/16 Thread Cutter (Included)

Size of bit needed for pilot hole - 9/32

Wood Mounting

Option 1: Drill Through and use a 3/8" bolt and nut with washers

Option 2: 2 x 3/16" screws or 2 x 1/4" screws

The Generation 1 Model was our prototype version, and although they work perfectly, some of these brackets may require very slight grinding or a bit of extra force to fit the container.

$ 34.95

Galvanized Steel Container Strut Mount (CSM™) Roof Brackets:

Mount Solar panels and other components to the exterior roof of your shipping container or sea can.

Must supply your own hardware and strut channels. These are found easily at your local hardware store.

Hardware Required:

(Underside) 2 x 1/4 Self Tapping Screws

(Front Plate) 2 x 3/8 Self Tapping Screws

(Upper Front Plate - Optional - For attaching to unistrut) 2 x 3/16

Strut Mounting (Minimum 4 required - Maximum 6)

6 x 3/8 bolts

6 x 3/8 spring nuts

$ 29.95

 Turn your container roof into a power station - without welding, cutting, or complicated installs!

Our solar panel mounting kits are designed specifically for shipping containers. They screw securely to the container top tubing without piercing the envelope and the bottom channel, so you can mount solar panels without compromising the structure. Perfect for DIY builds or professional installations.

Traditional solar mounting systems aren’t designed for corrugated steel container roofs. That means lots of welding, drilling, or risky modifications just to install panels. Our system eliminates all of that, giving you a strong, adjustable mount that installs clean and fast!

$ 475.00

Our solar panel mounting kits are designed specifically for shipping containers. They screw securely to the container top tubing without piercing the envelope and the bottom channel, so you can mount solar panels without compromising the structure. Perfect for DIY builds or professional installations.

Traditional solar mounting systems aren’t designed for corrugated steel container side walls. That means lots of welding, drilling, or risky modifications just to install panels. Our system eliminates all of that, giving you a strong, adjustable mount that installs clean and fast!

$ 475.00
